Showing all 7 results

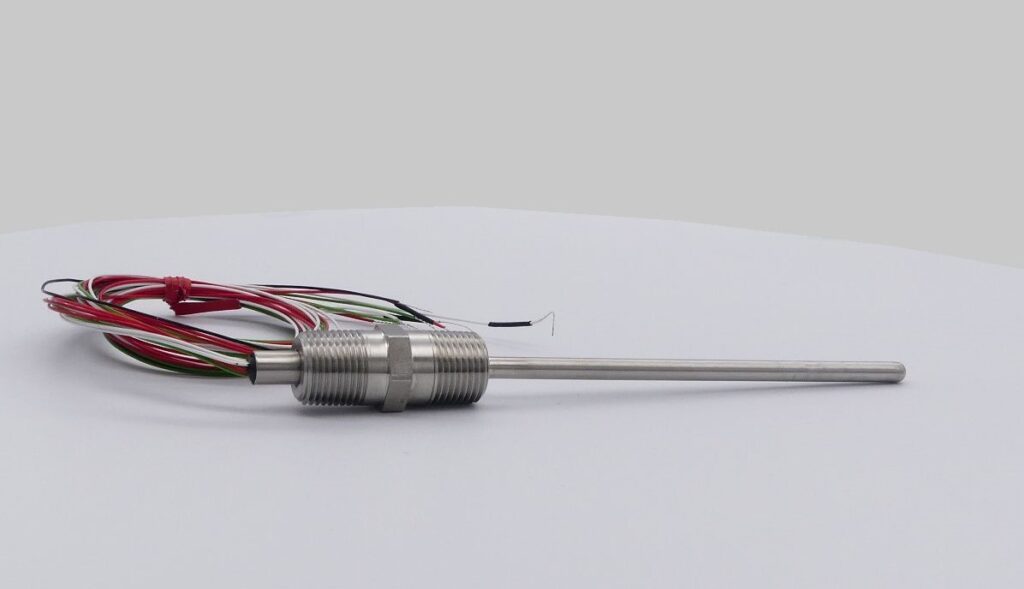

• 200A



  0.250″ (6.35mm) sheath diameter platinum RTD designed for direct immersion where fast response is needed or in small diameter lines. Pressure rated to 3000 psi. Hazardous ratings are available.

  Configure Part Quick View
  x

  200A 200A



  0.250" (6.35mm) sheath diameter platinum RTD designed for direct immersion where fast response is needed or in small diameter lines. Pressure rated to 3000 psi. Hazardous ratings are available.

  Sensor type	RTD (Pt100)
  Temperature range	-196 to 500 C (-320.8 to 932 F)
  Sensor style	Direct Immersion
  Sheath diameter	0.25", 0.188"
  Immersion depth	Fixed
  Process connection	1/2" NPT
  Head connection	NPT
  Spring loaded for thermowell	No
  Wire termination	Head
  Hazardous rating	Optional

  Printable Format Configure Part More Information

• 200B



  0.250″ (6.35mm) sheath diameter platinum RTD designed for variable immersion. Hazardous ratings are available.

  Configure Part Quick View
  x

  200B 200B



  0.250" (6.35mm) sheath diameter platinum RTD designed for variable immersion. Hazardous ratings are available.

  Sensor type	RTD (Pt100)
  Temperature range	-196 to 500 C (-320.8 to 932 F)
  Sensor style	Direct Immersion
  Sheath diameter	0.25", 0.188"
  Immersion depth	Variable
  Process Connection	None
  Head connection	NPT
  Spring loaded for thermowell	No
  Wire termination	Head
  Hazardous rating	Optional

  Printable Format Configure Part More Information

• 200C



  0.250″ (6.35mm) sheath diameter spring loaded platinum RTD for thermowell applications. Available as a bare sensor or with a thermowell.

  Configure Part Quick View
  x

  200C 200C



  0.250" (6.35mm) sheath diameter spring loaded platinum RTD for thermowell applications. Available as a bare sensor or with a thermowell.

  Sensor type	RTD (Pt100)
  Temperature range	-196 to 500 C (-320.8 to 932 F)
  Sensor style	Indirect Immersion
  Sheath diameter	0.250"
  Immersion depth	Fixed
  Process connection	Threaded/Tri-clamp/Socket weld/Flanged/Weld in/Van Stone
  Head connection	NPT
  Spring loaded for thermowell	Yes
  Wire termination	Head
  Hazardous rating	Optional

  Printable Format Configure Part More Information

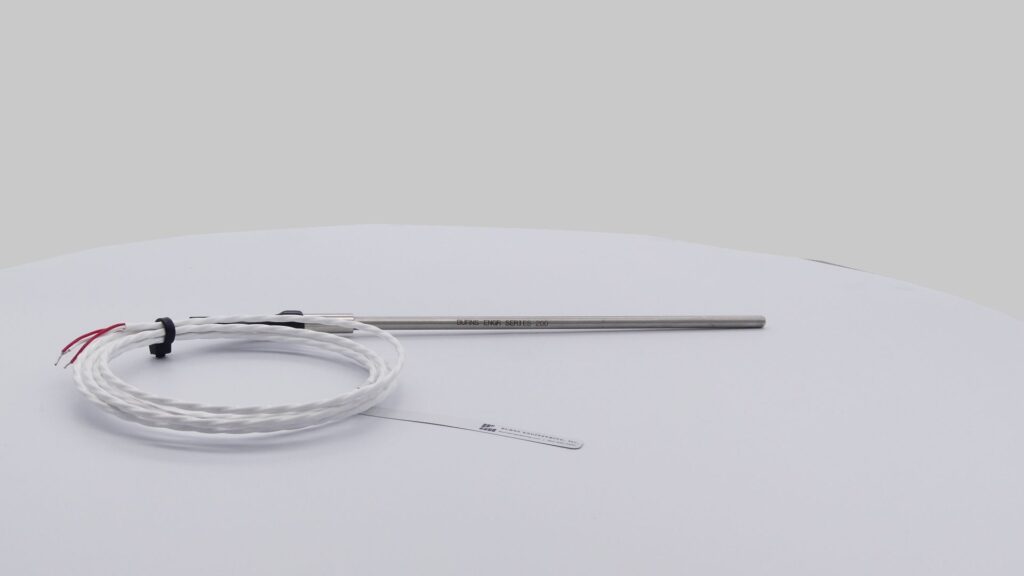

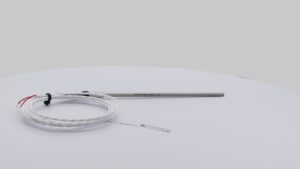

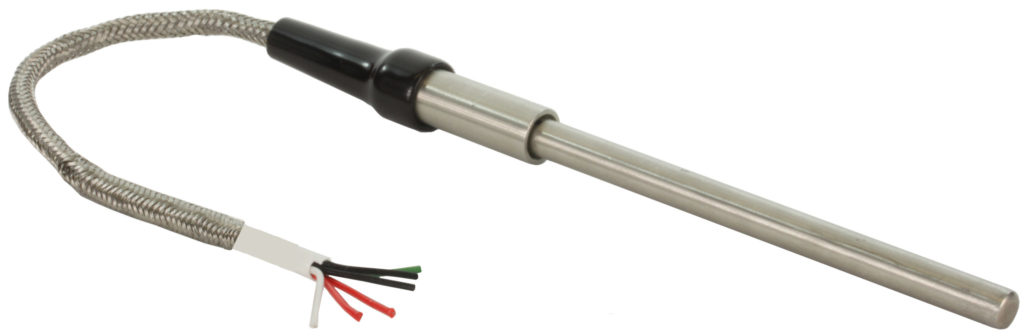

• 200G



  0.250″ (6.35mm) sheath diameter capsule type platinum RTD with transition fitting and vinyl boot for high humidity applications.

  Configure Part Quick View
  x

  200G 200G



  0.250" (6.35mm) sheath diameter capsule type platinum RTD with transition fitting and vinyl boot for high humidity applications.

  Sensor type	RTD (Pt100)
  Temperature range	-196 to 500 C (-320.8 to 932 F)
  Sensor style	Hand-held
  Sheath diameter	0.25", 0.188"
  Immersion depth	Variable
  Process connection	None
  Head connection	None
  Spring loaded for thermowell	No
  Wire termination	Cable
  Hazardous rating	None

  Printable Format Configure Part More Information

• 200K



  0.250″ (6.35mm) sheath diameter spring-loaded platinum RTD with bayonet fitting for thermowell applications. Hazardous ratings are available.

  Configure Part Quick View
  x

  200K 200K



  0.250" (6.35mm) sheath diameter spring-loaded platinum RTD with bayonet fitting for thermowell applications. Hazardous ratings are available.

  Sensor type	RTD (Pt100)
  Temperature range	-196 to 500 C (-320.8 to 932 F)
  Sensor style	Indirect Immersion
  Sheath diameter	0.250"
  Immersion depth	Fixed
  Process connection	Threaded/Tri-clamp/Socket weld/Flanged/Weld in/Van Stone
  Head connection	NPT
  Spring loaded for thermowell	Yes
  Wire termination	Head
  Hazardous rating	Optional

  Printable Format Configure Part More Information

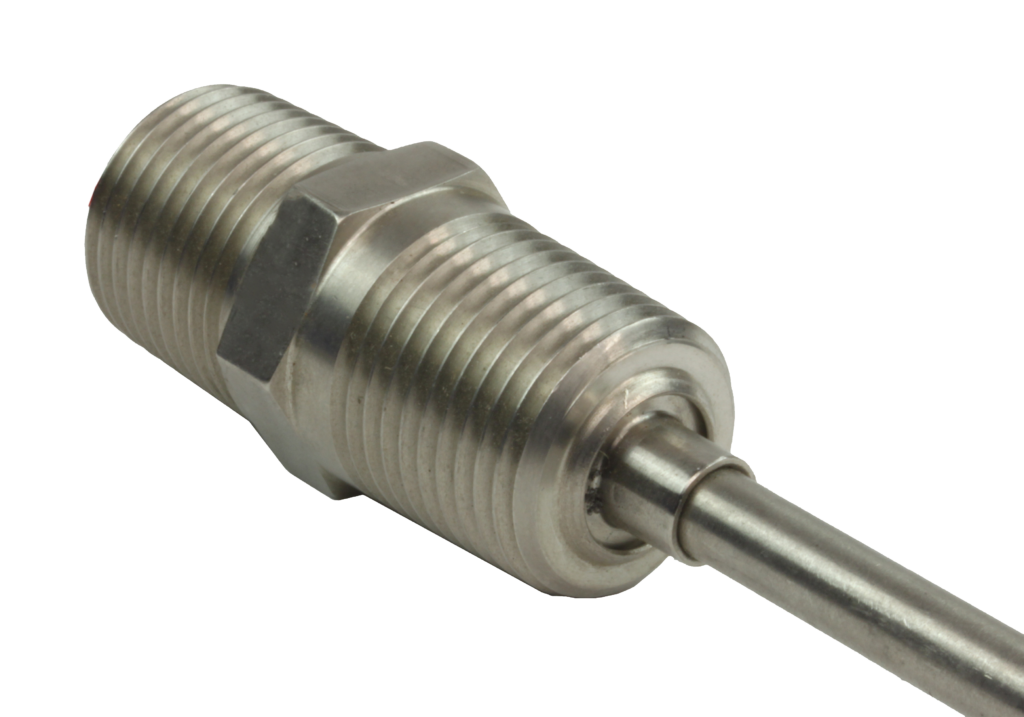

• 200L



  0.250″ (6.35mm) sheath diameter spring-loaded platinum RTD with threaded hex fitting. Hazardous ratings are available.

  Configure Part Quick View
  x

  200L 200L



  0.250" (6.35mm) sheath diameter spring-loaded platinum RTD with threaded hex fitting. Hazardous ratings are available.

  Sensor type	RTD (Pt100)
  Temperature range	-196 to 500 C (-320.8 to 932 F)
  Sensor style	Indirect immersion
  Sheath diameter	0.250"
  Immersion depth	Fixed
  Process Connection	Threaded/Tri-clamp/Socket weld/Flanged/Weld in/Van Stone
  Head connection	NPT
  Spring loaded for thermowell	Yes
  Wire termination	Head
  Hazardous rating	Optional

  Printable Format Configure Part More Information

• 200P



  0.250″ (6.35mm) sheath diameter capsule-style platinum RTD with plug connection.

  Configure Part Quick View
  x

  200P 200P



  0.250" (6.35mm) sheath diameter capsule-style platinum RTD with plug connection.

  Sensor type	RTD (Pt100)
  Temperature range	-196 to 500 C (-320.8 to 932 F)
  Sensor style	Direct Immersion
  Sheath diameter	0.188", 0.250"
  Immersion depth	Variable
  Process connection	None
  Head connection	None
  Spring loaded for thermowell	No
  Wire termination	None
  Hazardous rating	None

  Printable Format Configure Part More Information
