0.250″ (6.35mm) sheath diameter platinum RTD designed for direct immersion where fast response is needed or in small diameter lines. Pressure rated to 3000 psi. Hazardous ratings are available.

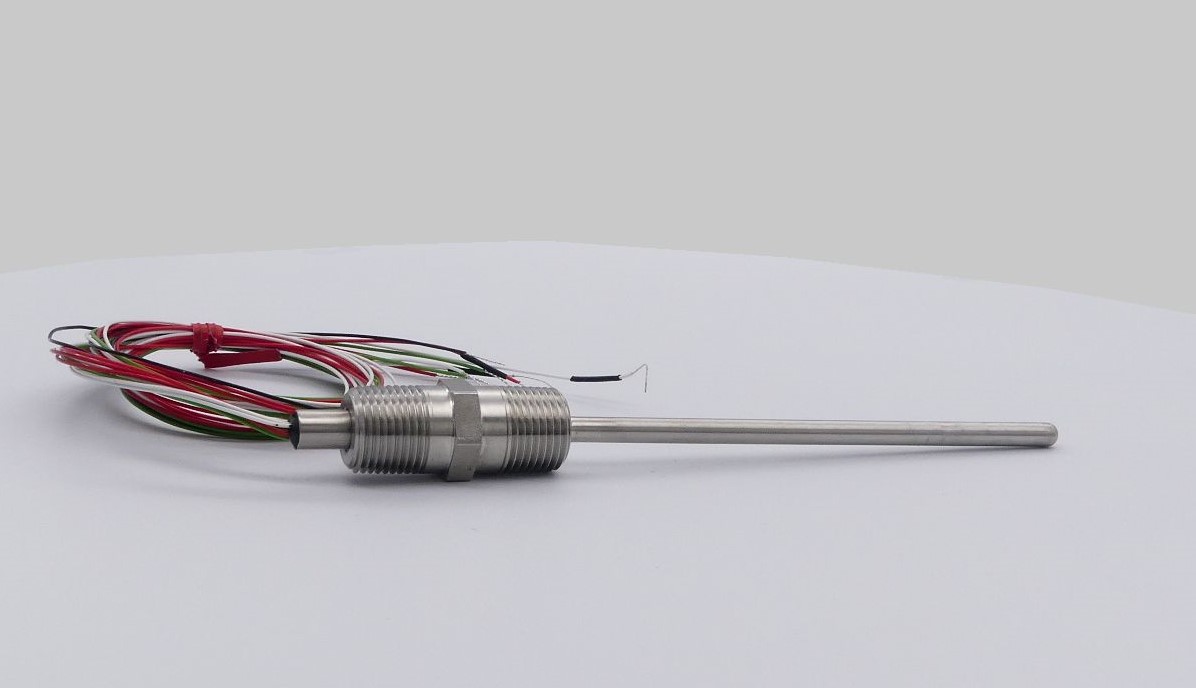

A direct immersion style RTD that features a 1/2″ NPT process connection and 1/2″ NPT instrument connection. The 1/4″ diameter stem is standard with an optional 3/16″ diameter available. Pressure rated to 3000 psi. Available with ratings for use in hazardous atmospheres. Single element with 3 or 4 wire circuit or dual 3 wire sensing elements.
Series 200 Standard Spec Sheet
https://burnsengineering.com/wp-content/uploads/2021/05/Series-200.pdf
| Sensor type | RTD (Pt100) |
| Temperature range | -196 to 500 C (-320.8 to 932 F) |
| Sensor style | Direct Immersion |
| Sheath diameter | 0.25", 0.188" |
| Immersion depth | Fixed |
| Process connection | 1/2" NPT |
| Head connection | NPT |
| Spring loaded for thermowell | No |
| Wire termination | Head |
| Hazardous rating | Optional |
