0.250″ (6.35mm) sheath diameter spring-loaded platinum RTD with threaded hex fitting. Hazardous ratings are available.

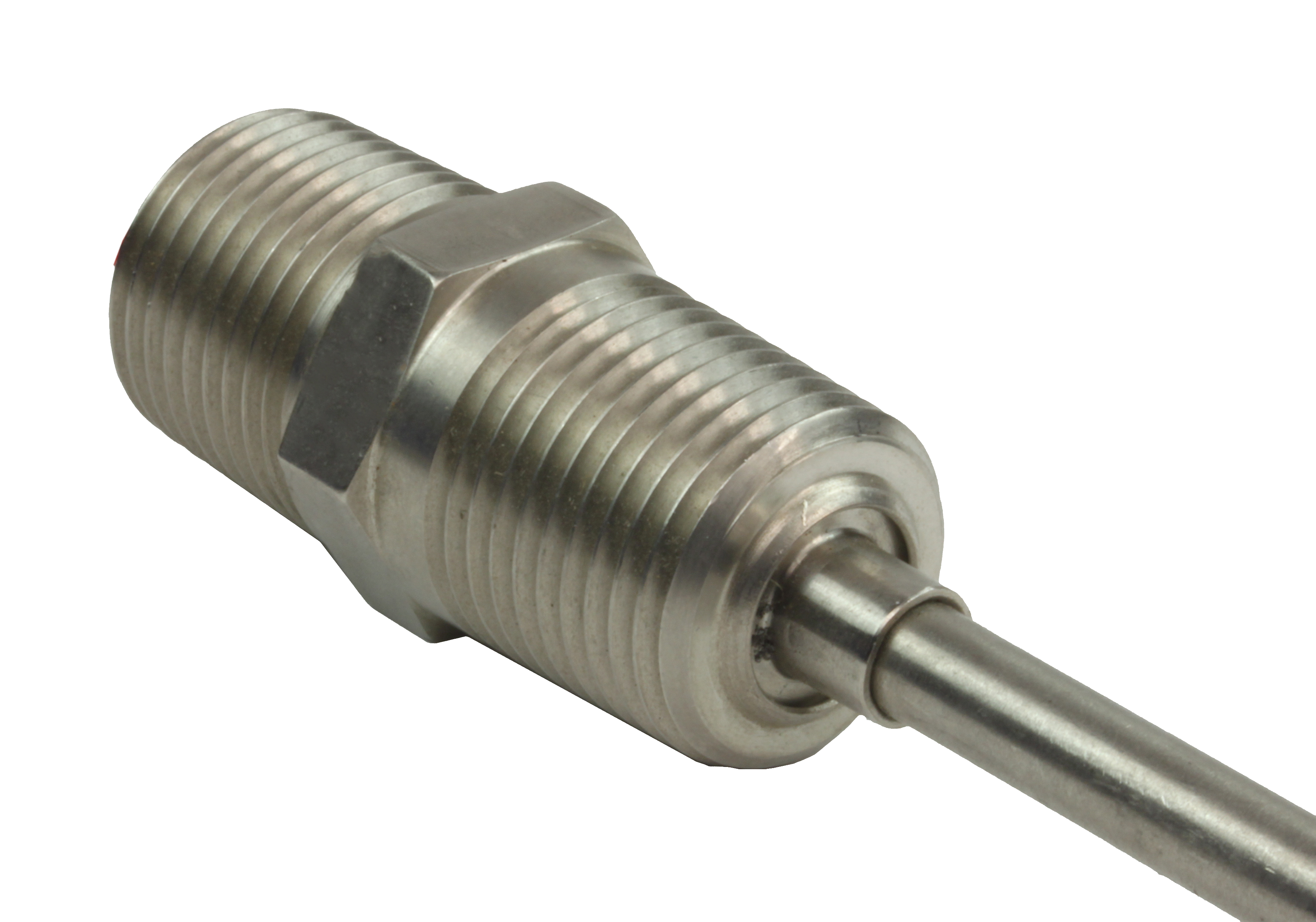

Spring Loaded Sensor with 0.50″ NPT Hex Fitting for Thermowell applications. Sensors available in 0.250″ (6.35mm) and 0.188″ (4.7625mm). Available as Explosion Proof and Flameproof. Available with union-nipple extension for easy removal from thermowell. Temperature range of -196°C to 500°C.
Series 200 Standard Spec Sheet
https://burnsengineering.com/wp-content/uploads/2021/05/Series-200.pdf
| Sensor type | RTD (Pt100) |
| Temperature range | -196 to 500 C (-320.8 to 932 F) |
| Sensor style | Indirect immersion |
| Sheath diameter | 0.250" |
| Immersion depth | Fixed |
| Process Connection | Threaded/Tri-clamp/Socket weld/Flanged/Weld in/Van Stone |
| Head connection | NPT |
| Spring loaded for thermowell | Yes |
| Wire termination | Head |
| Hazardous rating | Optional |
