SFM

The SFM is available in either RTD or thermocouple and is typically installed in vessels through the wall and flush with the inner surface.

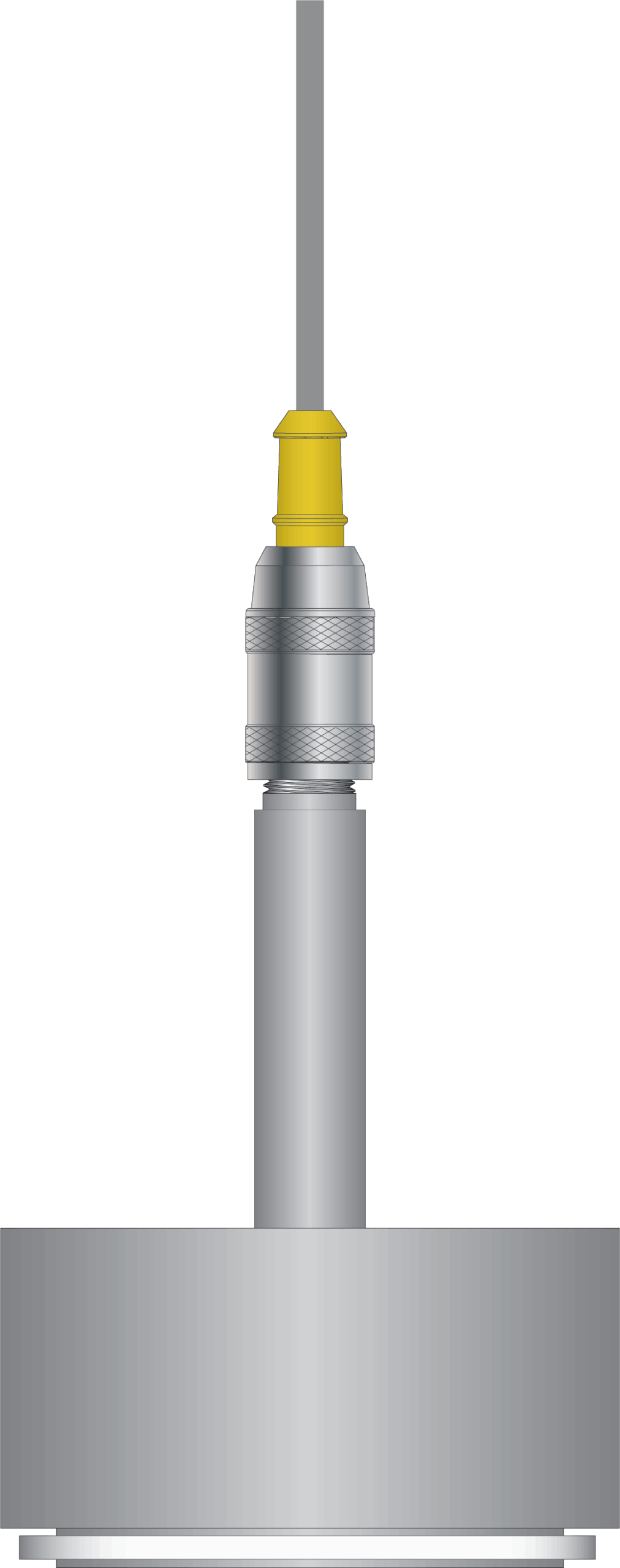

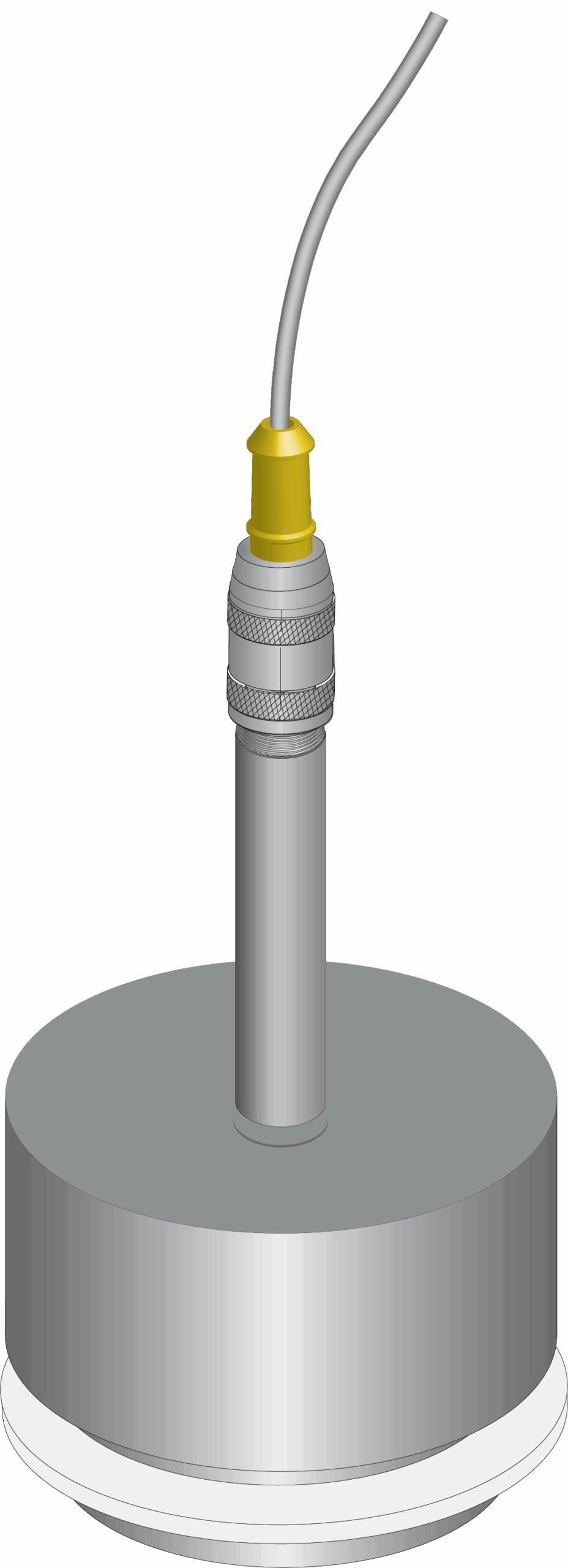

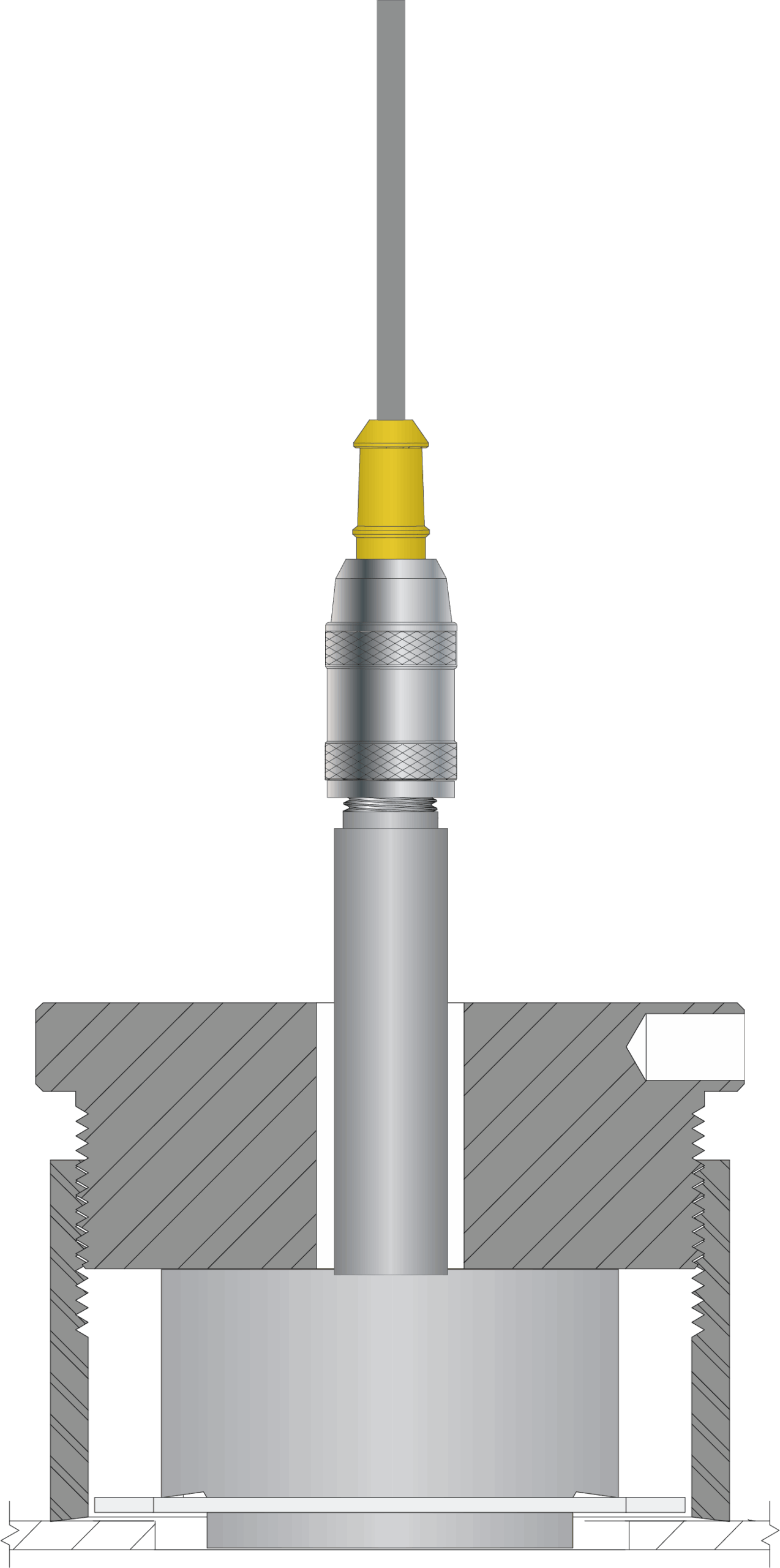

The SFM is a flush mount sensor that mounts flush inside tanks to allow for scraper-type mixing blades or other obstructions. A backing nut and welded-on adaptor allow easy installation and removal. The SFM is available in either RTD or thermocouple with a temperature range of -50°C to 200°C.

Case Study https://burnsengineering.com/wp-content/uploads/2021/03/A080616-SFM-on-Vessel.pdf

Sensor typeRTD (Pt100) or Thermocouple
Temperature range-50 to 200 C (-58 to 392 F)
Sensor styleDirect Immersion
Sheath diameterN/A
Immersion depthFixed
Process connection Weld in
Head connectionM12, 0.5 NPT, NPSM, 3/8 UNF
Spring loaded for thermowellNo
Wire terminationCable, Head
Hazardous ratingNone
