Description

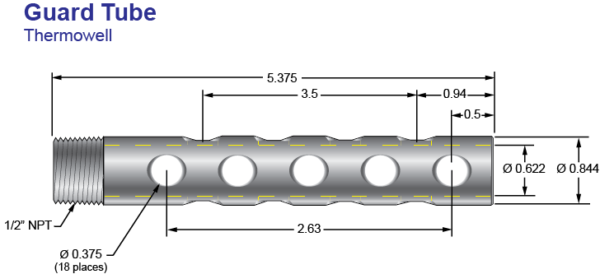

Typically used to protect a direct immersion style probe such as the Burns “A” style for air or water temperature measurements. The PVC plastic version works well as a sun shield to minimize radiation heating of the temperature sensor.
Guard tube thermowells providing protection from solar and physical damage in a variety of configurations.
Typically used to protect a direct immersion style probe such as the Burns “A” style for air or water temperature measurements. The PVC plastic version works well as a sun shield to minimize radiation heating of the temperature sensor.
0.250″ (6.35mm) sheath diameter thermocouple with an integrated spring-loaded terminal block designed for thermowell applications. Hazardous rating available.
Sensor type | Thermocouple (Special Limits) |
Temperature range | -200°C to 1260°C (-328°F to 2300°F) |
Sensor style | Indirect Immersion |
Sheath diameter | 0.250" |
Immersion depth | Fixed |
Process connection | Threaded/Tri-clamp/Socket weld/Flanged/Weld in/Van Stone |
Head connection | NPT |
Spring loaded for thermowell | Yes |
Wire termination | Head |
Hazardous ratings | Optional |
0.250″ (6.35mm) sheath diameter general purpose thermocouple plain sheath with one diameter for entire sheath length.
Sensor type | Thermocouple (Special Limits) |
Temperature range | -200°C to 1260°C (-328°F to 2300°F) |
Sensor style | Hand-held |
Sheath diameter | 0.250" |
Immersion depth | Variable |
Process connection | None |
Head connection | None |
Spring loaded for thermowell | No |
Wire termination | Cable |
Hazardous ratings | None |
0.250″ (6.35mm) sheath diameter platinum RTD designed for direct immersion where fast response is needed or in small diameter lines. Pressure rated to 3000 psi. Hazardous ratings are available.
Sensor type | RTD (Pt100) |
Temperature range | -196 to 500 C (-320.8 to 932 F) |
Sensor style | Direct Immersion |
Sheath diameter | 0.25", 0.188" |
Immersion depth | Fixed |
Process connection | 1/2" NPT |
Head connection | NPT |
Spring loaded for thermowell | No |
Wire termination | Head |
Hazardous rating | Optional |
0.250″ (6.35mm), 0.188″ (4.7625mm), and 0.125″ (3.175mm) Sheath diameter, spring-loaded with hex fitting for thermowell applications. Hazardous ratings are available
Sensor type | Thermocouple (Special Limits) |
Temperature range | -200°C to 1260°C (-328°F to 2300°F) |
Sensor style | Indirect immersion |
Sheath diameter | 0.250", 0.188", or 0.125" |
Immersion depth | Fixed |
Process Connection | Threaded/Tri-clamp/Socket weld/Flanged/Weld in/Van Stone |
Head connection | NPT |
Spring loaded for thermowell | Yes |
Wire termination | Head |
Hazardous rating | Optional |
