300G

300L

0.250″ (6.35mm) sheath diameter spring-loaded platinum RTD with threaded hex fitting. Hazardous ratings are available.

x

0.250" (6.35mm) sheath diameter spring-loaded platinum RTD with threaded hex fitting. Hazardous ratings are available.

Sensor type	RTD (Pt100)
Temperature range	-50 to 200 C (-58 to 392 F)
Sensor style	Indirect Immersion
Sheath diameter	0.250"
Immersion depth	Fixed
Process connection	Threaded/Tri-clamp/Socket weld/Flanged/Weld in/Van Stone
Head connection	NPT
Spring loaded for thermowell	Yes
Wire termination	Head
Hazardous rating	Optional

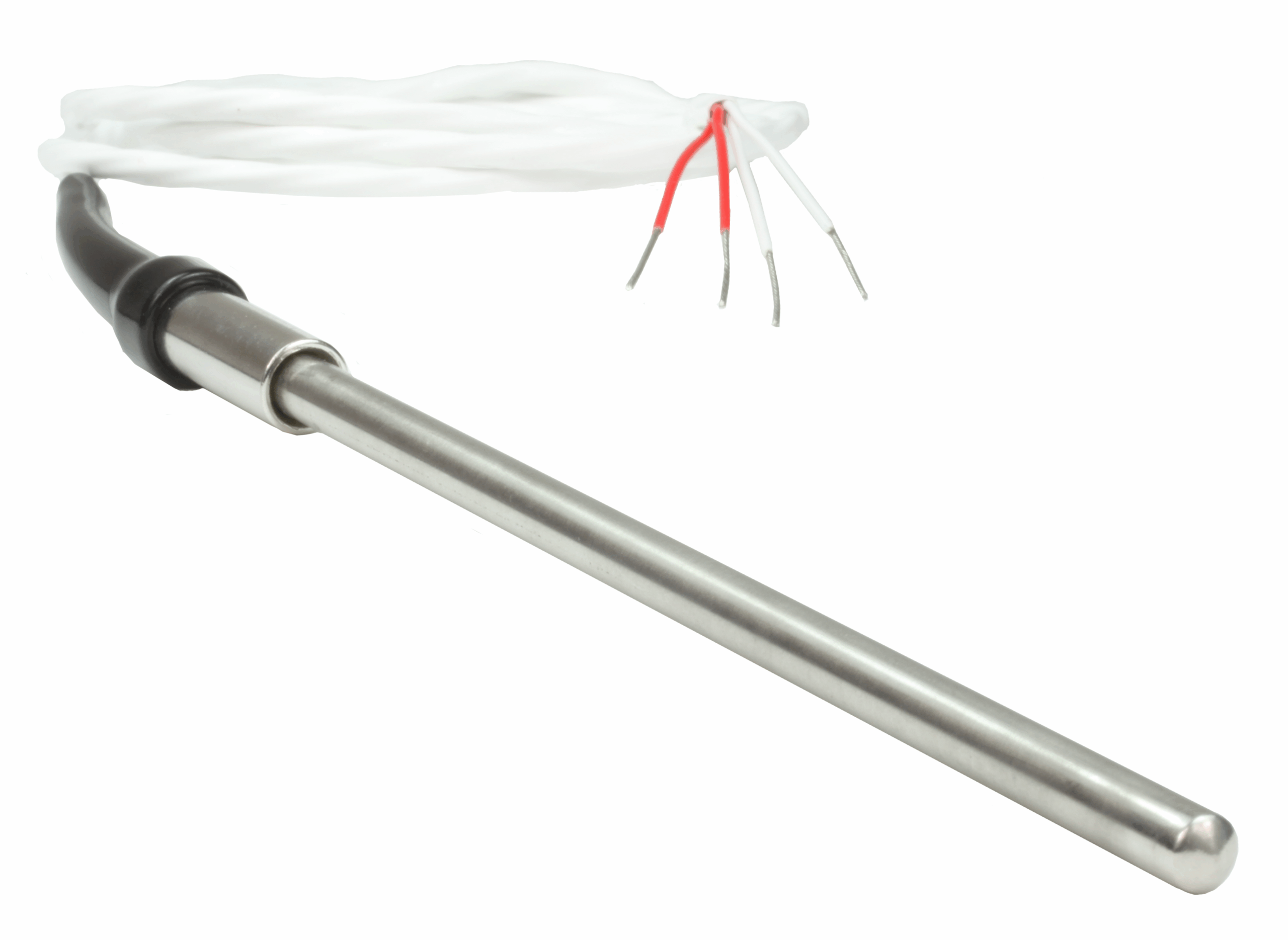

0.250″ (6.35mm) sheath diameter capsule type platinum RTD with transition fitting and vinyl boot for high humidity applications.

0.250″ (6.35mm), 0.188″ (4.7625mm), and 0.125″ (3.175mm) sheath diameter “Plug” Style General Purpose Thermocouple.

0.250″ (6.35mm) sheath diameter platinum RTD designed for variable immersion. Hazardous ratings are available.

Sensor type	Thermocouple (Special Limits)
Temperature range	-200°C to 1260°C (-328°F to 2300°F)
Sensor style	Hand-held
Sheath diameter	0.125", 0.188", 0.250"
Immersion depth	Variable
Process Connection	None
Head connection	None
Spring loaded for thermowell	No
Wire termination	None
Hazardous rating	None
