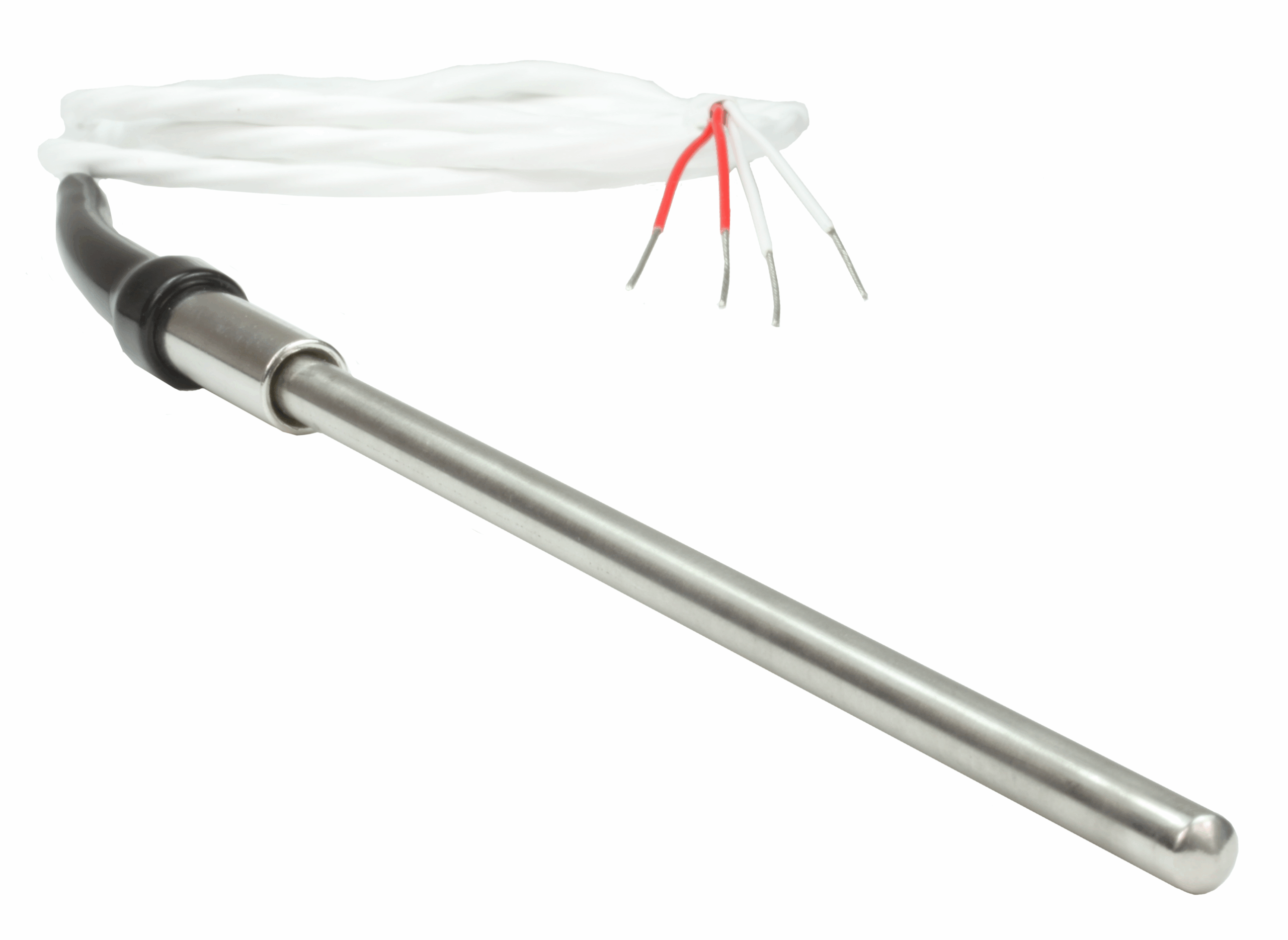

0.250″ (6.35mm), 0.188″ (4.7625mm), and 0.125″ (3.175mm) sheath diameter. General purpose capsule style thermocouple with transition fitting.

Thermocouple with extension cable options. Can be used as a handheld probe or installed into a process with a compression fitting. A wide temperature range of -196°C to 1010°C plus it can be bent up to 90 degrees in the field to adapt to unique installations.

Case Study https://burnsengineering.com/wp-content/uploads/2021/03/A090826-RTD-or-Thermocouple.pdf

Series 100 Standard Spec. Sheet


Sensor typeThermocouple (Special Limits)
Temperature range-200°C to 1260°C (-328°F to 2300°F)
Sensor styleHand-held
Sheath diameter0.125", 0.188", 0.250"
Immersion depthVariable
Process Connection None
Head connectionNone
Spring loaded for thermowellNo
Wire terminationCable
Hazardous ratingOptional
